Sound Pressure Level SPL

The definition of dB SPL is the 20 log of the ratio between the measured sound pressure level and the reference point. This reference point is defined as 0.000002 Newton's per square meter, the threshold of hearing.

+3dB = 2x the power = 1.44x the SPL
+6dB = 4x the power = 2x the SPL
The doubling of SPL represents in four times power increase.

One acoustic watt is equivalent to 107.5 dBSPL at around a meter from an omnidirectional source.

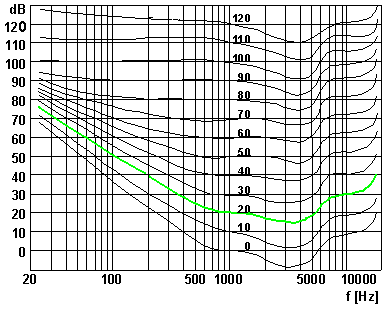

This human sensitivity curve changes for soft and load sounds, discovered by Fletcher and Munson 1933:

The A-weighted sound level represents the human hearing and hearing damage in the possible best way. Without any other information the A-weighted sound level is the best information available for valuing noise problems.

See the A-weighted Table.

See Speech Level.

In the signal chain the reference level of " 0dB " ( = +6dBu ) also should equal an SPL listening level for radio control monitoring etc. of 92 dB(A).

For movie sound mixing the acoustical reference is defined by SMPTE to 85 dB SPL, read with a sound pressure level meter (SPL) set on C weighted/Slow scale. To achieve the acoustic level of 85 dB SPL a electric level (pink noise) of -18 dB FS is defined (SMPTE RP 200).

Sound Levels
Sounds dB SPL
Rocket Launching 180
Jet Engine 140
Thunderclap, Air Raid Siren 1 Meter 130
Jet takeoff (200 ft) 120
Rock Concert, Discotheque 110
Firecrackers, Subway Train 100
Heavy Truck (15 Meter), City Traffic 90
Alarm Clock (1 Meter), Hair Dryer 80
Noisy Restaurant, Business Office 70
Air Conditioning Unit, Conversational Speech 60
Light Traffic (50 Meter), Average Home 50
Living Room, Quiet Office 40
Library, Soft Whisper (5 Meter) 30
Broadcasting Studio, Rustling Leaves 20
Hearing Threshold 0

Acoustical Power (Watts) SPL (dB)
100,000,000 200
100,000 170
100 140
10 130
1 120
0.1 110
0.01 100
0.001 90
0.0001 80
0.00001 70
0.00000001 40
0.000000001 30
0.000000000001 0
