VESA - Video Electronics Standards Association MIS - VESA Mounting Interface Standard |
VESA Mounting Compliance

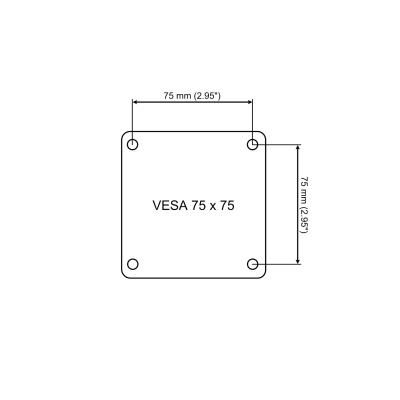

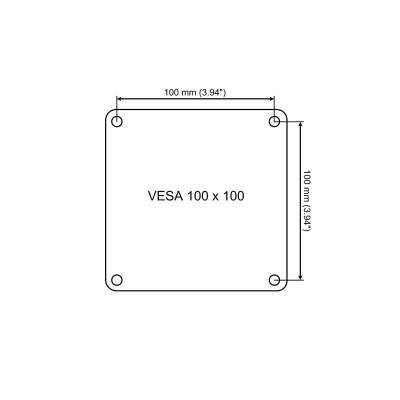

Standards: VESA 75 (75 x 75), 100 (100 x 100), 200 x 100, 200 x 200, 400 x 200, 400 x 400, 600 x 200, 600 x 400 oder 800 x 400
Classifications: VESA MIS-D, MIS-E und MIS-F
VESA Mounting 200x200 usually for Displays between 24" and 32" and up to about 25kg |

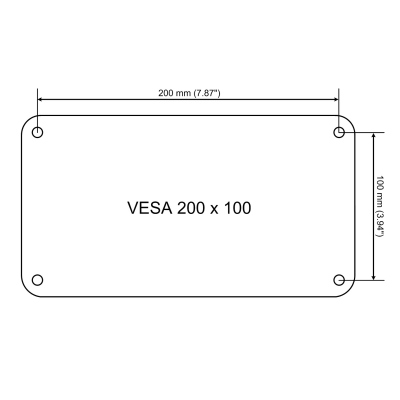

VESA Mounting 200x100 usually for Displays between 24" and 32" and up to about 25kg |
VESA Mounting 200x200 usually for Displays between 12" and 24" and up to about 15kg |
VESA Mounting 200x100 usually for Displays between 12" and 24" and up to about 15kg |
Larger Displays usually have a VESA mounting of 400mm x 200mm, 600mm x 400mm or 800mm x 400mm.
VESA Standard Screw Size | |
20 x 50 mm | M4 |
35 x 75 mm | M4 |
75 x 75 mm | M4 |
100 x 100 mm | M4 |
100 x 200 mm | M4 |
200 x 200 mm | M6 |
200 x 200 mm, and larger | M8 |
