Level Distribution

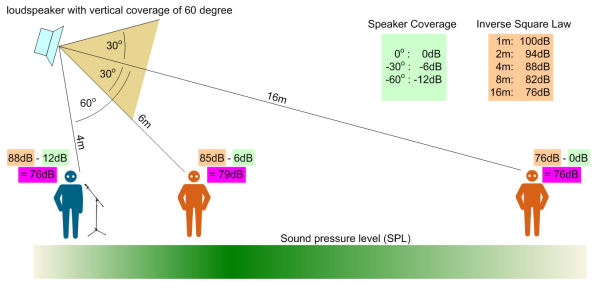

Sound Reinforcement with regular Loudspeakers

Using a regular loudspeaker with a vertical coverage of 60º, the following level distribution would be reached:

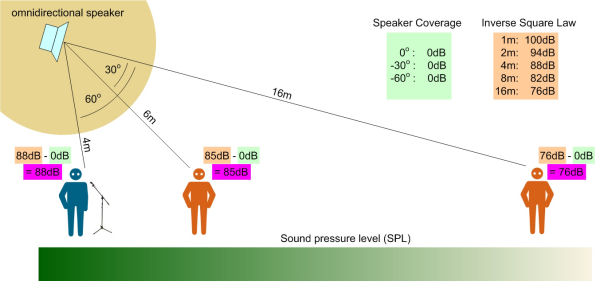

Sound Reinforcement with an omnidirectional Source

Using an omnidirectional loudspeaker sound distribution into all angles would be equal and the following level distribution would be reached:

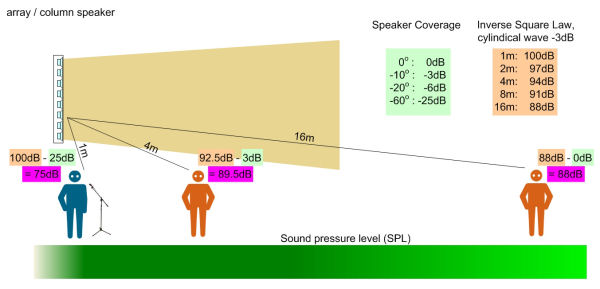

Sound Reinforcement with steerable Array Speakers

Using a steerable array speaker a much higher SPL could be reached at the listeners with less gain at the mic position:
