Distribution Area for Loudspeakers, 60 degree x 60 degree
|
Ceiling Height |
3m |
3,5m |
4m |
4,5m |
5m |
5,5m |
6m |
Distance between Speakers |
1,8m |
2,2m |
3m |
3,6m |
4,2m |
4,8m |
5,4m |
Distribution Area |
3qm |
5qm |
9qm |
13qm |
18qm |
23qm |
29qm |
|
|
Distribution Area for Loudspeakers, 90 degree x 90 degree
|
Ceiling Height |
3m |
3,5m |
4m |
4,5m |
5m |
5,5m |
6m |
Distance between Speakers |
3m |
4m |
5m |
6m |
7m |
8m |
9m |
Distribution Area |
9qm |
16qm |
25qm |
36qm |
49qm |
64qm |
81qm |
|
|
Distribution Area for Loudspeakers, 120 degree x 120 degree
|
Ceiling Height |
3m |
3,5m |
4m |
4,5m |
5m |
5,5m |
6m |
Distance between Speakers |
5,5m |
7m |
9m |
10,5m |
12m |
14m |
16m |
Distribution Area |
30qm |
49qm |
81qm |
110qm |
144qm |
196qm |
256qm |

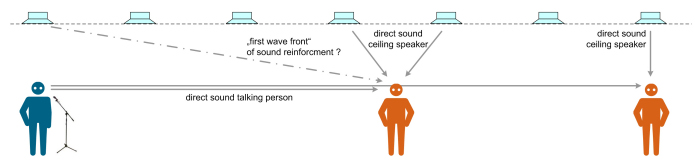

If the distance to the source (talking person or first speaker line ('zero delay') is larger than 5 to 6 times the distance to the ceiling speakers above a listener the delayed system doesn't work:
The level difference between the source signal (first wave front) and the delayed signal is more than 14 dB and the first wave front is not audible anymore (precedence effect).
