Paging Switch for 70V / 100V Systems

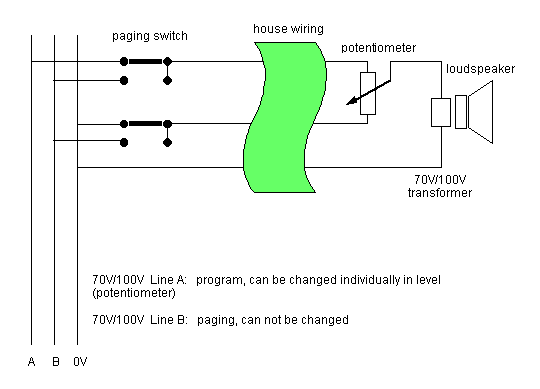

Paging switch for a program line (70V / 100V) and a separate paging line (70V / 100V).

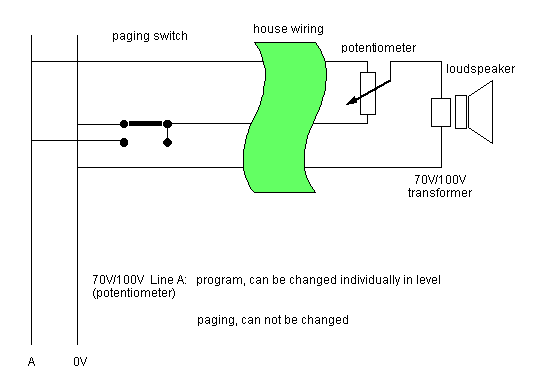

Paging switch for a combined program and paging line (70V / 100V). Here the paging signal must be switched on the input side of the amplifier too.
