Screen Sizes

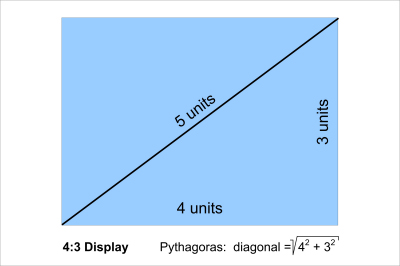

Image Geometry

error in the 16:10 table: it must be:     Height = diagonal * 10 / 18.87 !!

 Download Excel file to calculate image height, width, diagonal width and area

Inch to mm / cm

TO CONVERT INCHES TO MILLIMETERS > MULTIPLY INCHES X 25.4

TO CONVERT MILLIMETERS TO INCHES > MULTIPLY MILLIMETERS X 0.03937

 centimeter cm meter m inch in feet ft

Screen Sizes 16:9

 Diagonal (inch) Diagonal (mm) Height x Width inch mm mm x mm 45" 1143 996 x 560 58" 1473 1284 x 722 60" 1524 1328 x 747 65" 1651 1439 x 809 72" 1829 1594 x 897 84" 2134 1860 x 1046 92" 2337 2037 x 1146 100" 2540 2214 x 1245 120" 3048 2657 x 1494 150" 3810 3320 x 1868 200" 5080 4427 x 2490

Screen Sizes 4:3

 Diagonal Height x Width inch mm x mm 13" 199 x 265 15" 230 x 305 19" 297 x 390 20" 299 x 401 42" 920 x 518 50" 790 x 1040 67" 1060 x 1400 72" 1123 x 1488 80" 1219 x 1625 84" (4:3) 1305 x 1732 84" (5:4) 1359 x 1692 96" 1514 x 2001 100" (4:3) 1575 x 2083 100" (5:4) 1638 x 2035 120" (4:3) 1880 x 2489 125" 1925 x 2559 140" 2168 x 2878 150" 2321 x 3081 160" 2473 x 3284 180" 2774 x 3688 200" 3048 x 4064

Calculation of the projection width for a given height (4:3)

Width = 4/3 * Height

Calculation of the projection height for a given width (4:3)

Height = 3/4 * Width

Calculation of the projection width for a given height (16:9)

Width = 16/9 * Height

Calculation of the projection height for a given width (16:9)

Height = 9/16 * Width
